Elec Driver
Electric Wireless Torque Driver
Accurate & Fast / Reliable & Strong / User-Friendly
Accurate & Fast / Reliable & Strong / User-Friendly

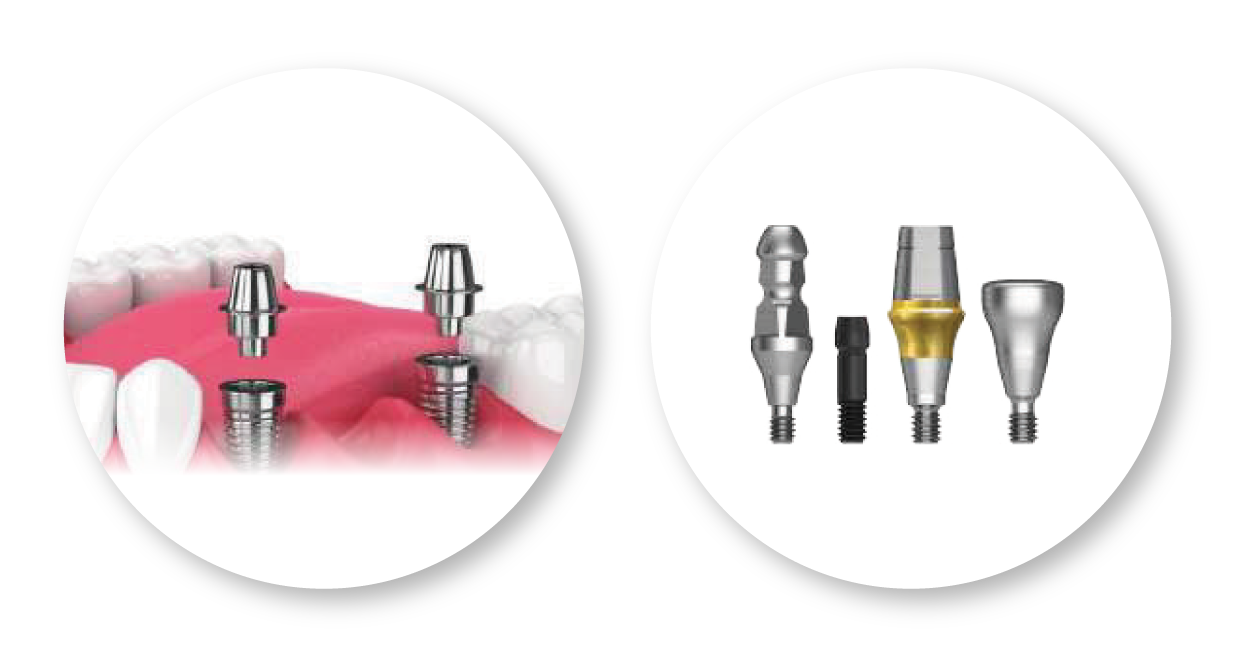

Prosthetic screw connection all in one!
· Accurate tightening torque minimizes fracture / loosing.
· Contra angle structure allows easy access to posterior parts.
· Abutment and orthodontic fixtures can be directly buried
and shorten procedure time
· Contra angle structure allows easy access to posterior parts.
· Abutment and orthodontic fixtures can be directly buried
and shorten procedure time
Prosthetic screw connection all in one!
· Accurate tightening torque minimizes fracture / loosing.
· Contra angle structure allows easy access to posterior parts.
· Abutment and orthodontic fixtures can be directly buried
and shorten procedure time
· Contra angle structure allows easy access to posterior parts.
· Abutment and orthodontic fixtures can be directly buried
and shorten procedure time

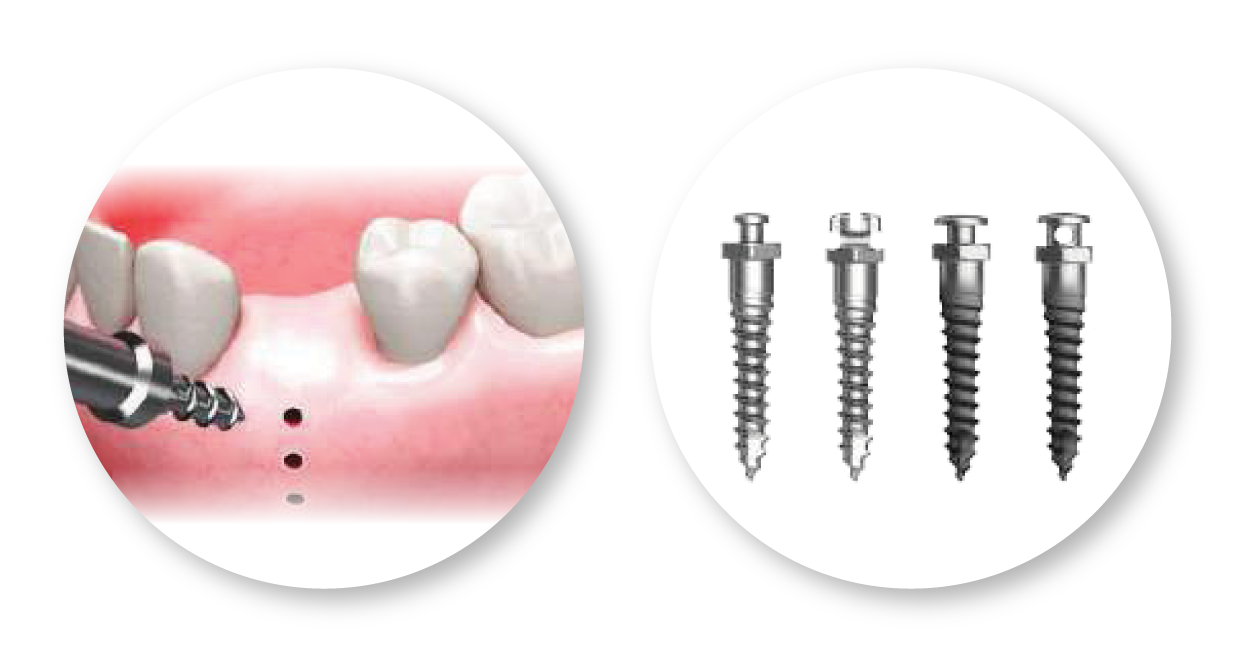

Easily use
when orthodontic mini screw inserted
when orthodontic mini screw inserted
· 5 ~ 35 Ncm for placement / removal even from hard bone.
· Torque setting function minimizes calibration screw fracture / fall.
· Torque setting function minimizes calibration screw fracture / fall.
Easily use
when orthodontic mini screw inserted
when orthodontic mini screw inserted
· 5 ~ 35 Ncm for placement / removal even from hard bone.
· Torque setting function minimizes calibration screw fracture / fall.
· Torque setting function minimizes calibration screw fracture / fall.
Specification
Specification

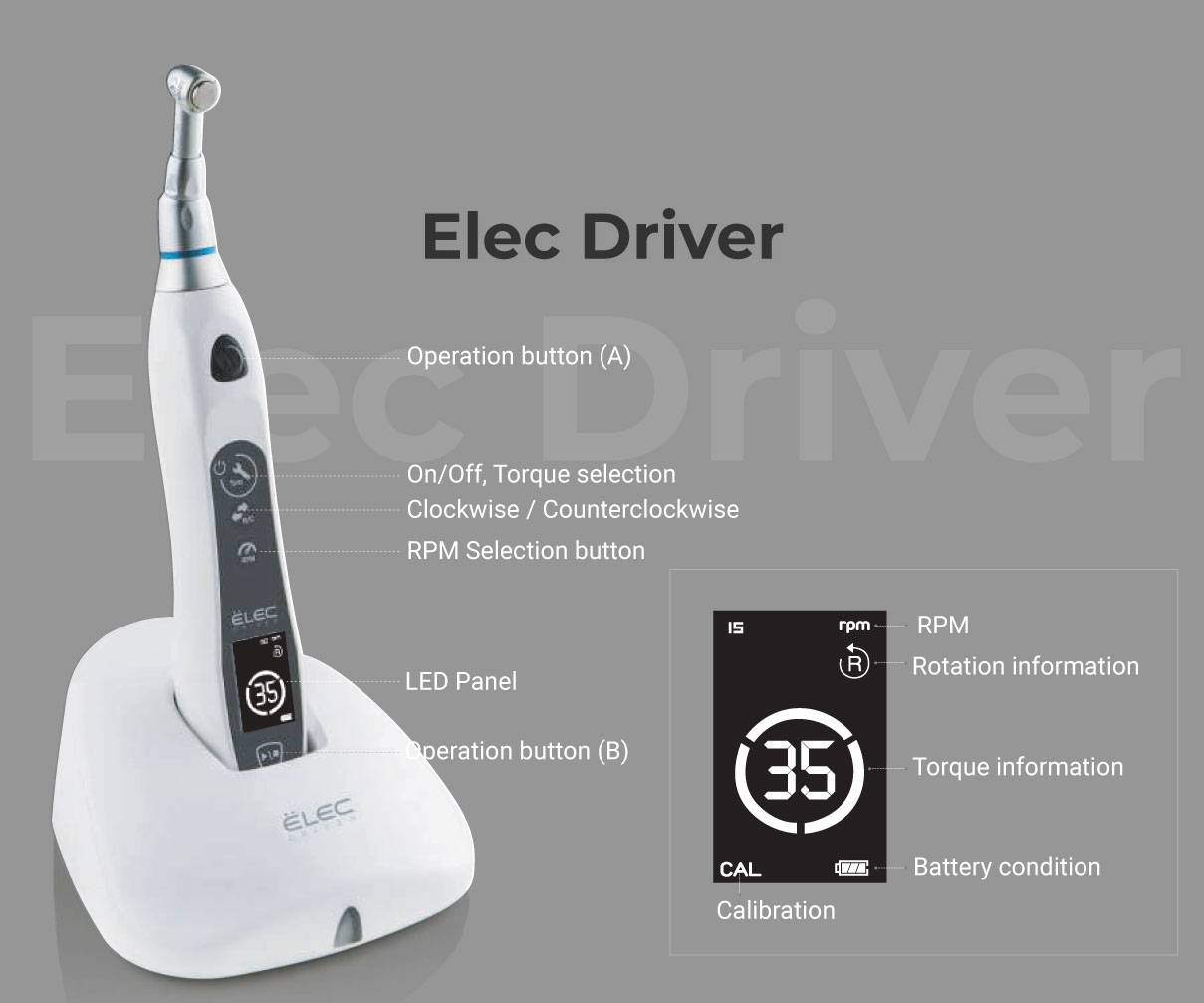

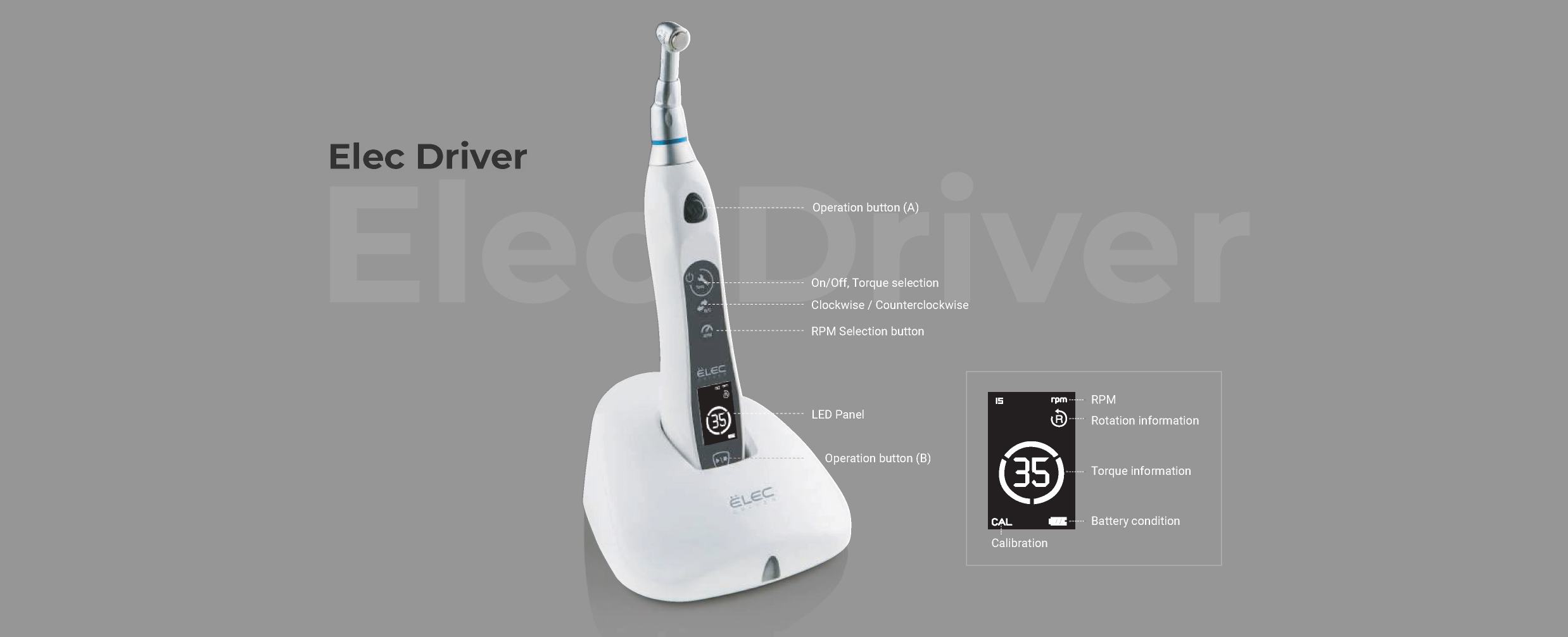

Drive Handpiece
| Model | TD-C30D |
| Battery Type | Li-Polymer |
| Battery Capacity | 7.4V DC / 360 mAh |
| Speed Range | 15, 30, 45, 60rpm ± 10% |
| Torque stages | 5, 10, 15, 20, 25, 30, 35N cm + 10% |
| Dimension | 30(W) x 28(L) x 200(H)mm |
| Weight | 150g |
Charging Cradle
| Model | EH-CS12 |
| Input | 12V DC / 1.0A |
| Output | 8.4V DC / 360mA |
| Charging time | Approx. 90min |
| Dimension | 105(W) x 111(L) x 51(H)mm |
| Weight | 80g |
Adaptor
| Input | 100-240VAC, 0.3A |
| Output | 12VDC, 0.5A |
Handpiece Head
| Screw driver | Shank ø2.35mm, ISO1797-1 Type1 |
| Chuck type | Push button chuck |
| Weight | 50g |
Drive Handpiece
| Model | TD-C30D |
| Battery Type | Li-Polymer |
| Battery Capacity | 7.4V DC / 360 mAh |
| Speed Range | 15, 30, 45, 60rpm ± 10% |
| Torque stages | 5, 10, 15, 20, 25, 30, 35N cm + 10% |
| Dimension | 30(W) x 28(L) x 200(H)mm |
| Weight | 150g |
Charging Cradle
| Model | EH-CS12 |
| Input | 12V DC / 1.0A |
| Output | 8.4V DC / 360mA |
| Charging time | Approx. 90min |
| Dimension | 105(W) x 111(L) x 51(H)mm |
| Weight | 80g |
Adaptor
| Input | 100-240VAC, 0.3A |
| Output | 12VDC, 0.5A |
Handpiece Head
| Screw driver | Shank ø2.35mm, ISO1797-1 Type1 |
| Chuck type | Push button chuck |
| Weight | 50g |
